Hinges

Tollgate supply a wide range of hinges to suit all cubicle requirement and price structures. All hinges are supplied in pairs as standard, or in sets of 3No. for heavy/ oversized doors and are available in either ‘face fixed’ or ‘bolt through’ fixing options. Cranked, lift-off butt hinges and 100mm rising/ falling hinges must be ordered in left or right hand hung options when seen from outside the cubicle.

Hinges with adjustable nylon cams enable to the door to fall open/ closed as required, these hinges also allow emergency removal of doors by extraction of hidden retaining screws.

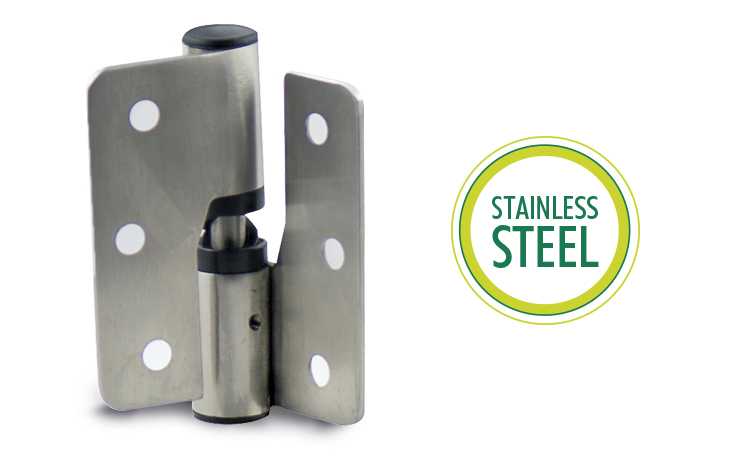

Gravity Stainless Hinge (Pair), (Bolt Through)

C5482

12-13mm LEFT.............PK3725
12-13mm RIGHT...........PK3721

Satin Polished

Gravity Stainless Hinge (Pair), (Face Fix)

C5482

12-13mm LEFT.............PK3762
12-13mm RIGHT...........PK3761

Satin Polished

Gravity Stainless Hinge (Pair), (Face Fix)

C5482

17-19mm LEFT.............PK3762
17-19mm RIGHT...........PK3761
20-21mm LEFT.............PK3762
20-21mm RIGHT...........PK3761

Satin Polished

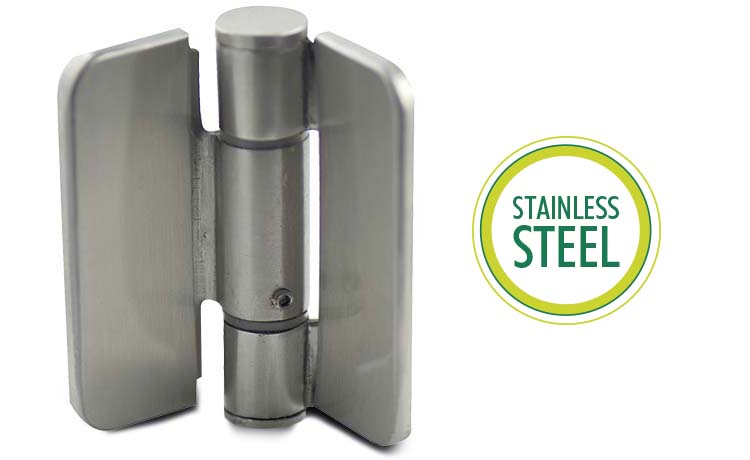

Sprung Hinge with Covers (Wide)

C4996

12-13mm...............................C4996
17-19mm...............................C4996
20-21mm...............................C4996

Satin Polished

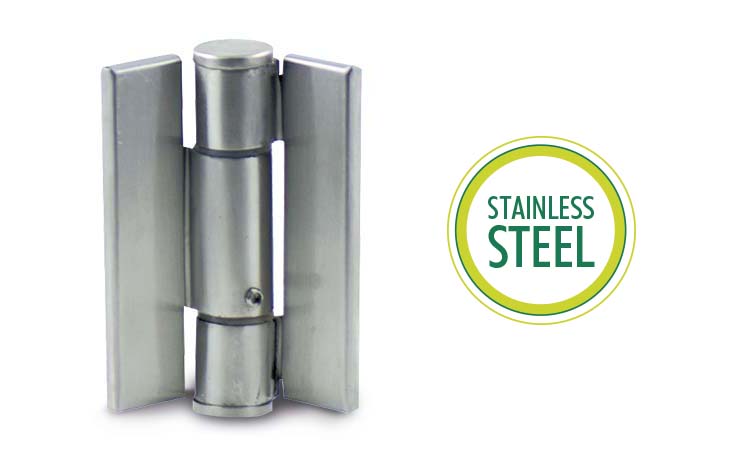

Sprung Hinge with Covers (Narrow)

C4933

12-13mm................................C4933
17-19mm................................C4933
20-21mm................................C4933

Satin Polished
